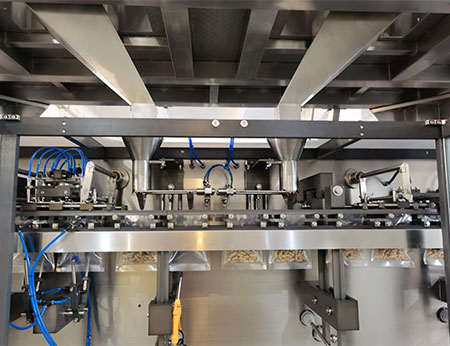

The Automatic Doypack Packing Machine is a packaging virtuoso. It deftly fills and seals doypacks with high precision and speed, ensuring products are well - packaged and ready for market.
The Automatic Doypack Packing Machine is a staple in the snack industry. In a nuts factory, it efficiently fills doypacks, providing an attractive, resealable package for products sold in grocery stores.
|
Application bag material |
PE，PP，CPP，OPP，PET，PA（NY），VMPET、VMCPP |
|
Packing speed |
40-50bags/min |
|
Packing accuracy |
±1.5% |
|
Bag width range |
50~120mm |
|
Bag height range |
70~350mm |
|
Air consumption |
0.8m3/min |
|
Working pressure |
0.6-0.8Mpa |
|
Maximum packing weight |
1000g |
|
Power supply |
4kw，220V、380V、450V |
|
Machine weight |
2200kg |
|
Machine dimension (L×w×H) |
3100mm×1320mm×1400mm |
|
Rack material |
304 stainless steel shell, the body is plastic coated carbon steel |
|
Core elemen |
Pneumatic Element：Japan SMC |
|
Electrical Element：Japan Omron PLC、Variable-frequency Drive、Touch screen |
